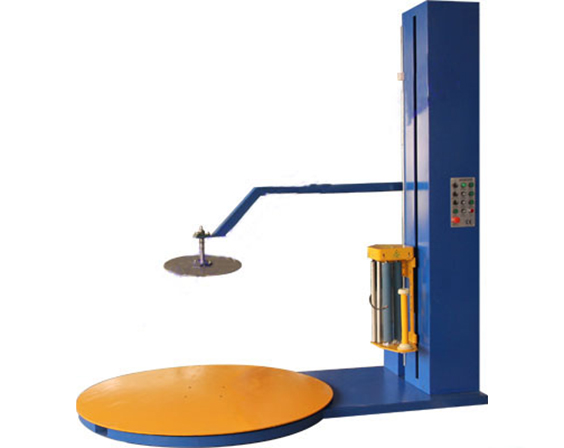

Membrane frame for the power pre-stretching mechanism, pre-stretching up to 250%, reducing the consumption of film. Film speed adjustable, separate DC motor control. Membrane rack up and down speed adjustable alone. Membrane frame is cast aluminum frame, light and stable. Selection of wear-resistant plastic roller, long service life. Film system servo mechanism, a pull can be. Lifting column for double-chain structure, stable and reliable. PLC programmable control. Top and bottom winding layers, the number of over-peak time, strengthening layer 0-9 can be set directly on the panel.
Simple operation: just press the auto-run button, you can complete the entire packaging process. Photoelectric switch, automatic detection of the height of the goods.
Featured electrical control components, high reliability. Automatic manual conversion at any time.
machine type | XK-4502 |
Power / Power | 220V/380V 50/60HZ 1KW |
Maximum package / load-bearing | L1400*W1400*H1800mm 2000 kg |
Turntable diameter / height | 1500 &1650 & 1800 mm,H:85mm |
Turntable speed | 0-12 r / min |
weight | 800 kg |
Machine size | 2500*1600*2100mm |
