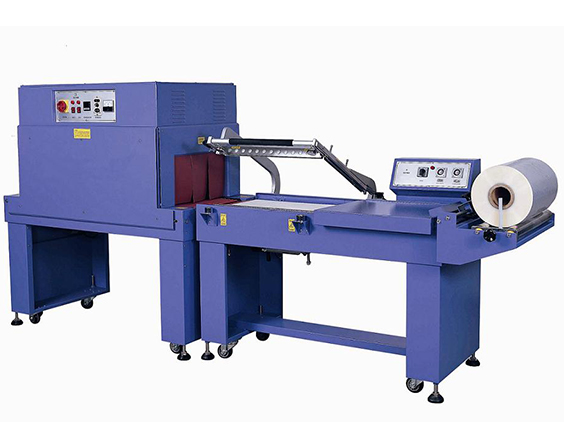

The machine adopts stainless steel heater, high-power motor wind, so that the shrinking furnace heating fast, large air volume, uniform temperature, according to the size of the product, throughput can adjust the delivery speed and temperature for software, biscuits, printing, pharmaceutical and flooring , Ceramics, and other industries in high-volume shrink packaging. Complete set of actions automatically by the cylinder, greatly reducing work intensity and increase production efficiency. Anti-stick temperature alloy seal knife, will not break, the seal is not coking, do not smoke. Sealed knife with automatic protection, effectively prevent mis-cut packaging, to protect the operator's safety. Can choose manual, automatic two kinds of packaging. The finished product conveyor belt is automatically output and the delivery time is adjustable. Imported belt wear-resistant, high strength. Taiwan CKC precise time control. Sliding film stent can be placed in a variety of films. Hand wheel for easy adjustment of the conveyor belt level.
★ Internal circulation of hot air blast furnace design, small size but high efficiency.
★ There are anti-pinch safety protection device, there is a cut off anti-heat compensation device.
machine type | XK-5545TB+XK4525 |
Power / Power | 220V/380V 50/60HZ 12KW |
Maximum package size | 500×400×250mm |
Maximum sealing size | 550×450mm |
Work efficiency | 7-15 packets / minute |
Use gas source | 6kg |
Machine size / weight | 3200×100×1600mm 280kg |
