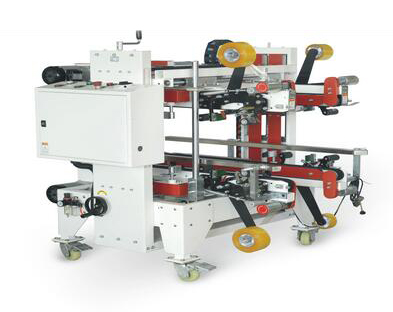

Machine Model: SHXK- FG500I
The smallest carton size: L340 * W200 * H180mm
The largest carton size: L500 * W500 * H500mm
Belt speed: 6-10 boxes / min
Mechanical Dimensions: L1265 * W1150 * H1500mm
Applicable power: 220 / 380V 50Hz
Applicable gas source: 6kgf / cm2, 90nl / min
Power consumption: 0.4KW
Applicable tape: W48,60,75mm choose one
Machine weight: 350kg
Machine features:
? The machine does not include steering and finishing agencies;
? When changing specifications, adjust the width and height manually.
? The front end can be equipped with "a" font sealing machine and 90 degree steering finishing mechanism, the corners of the "workers" font sealing a completed;
? Standard machine table height is 620mm;
? Sticking device structure is precise and firm, it runs smoothly and has long service life.
? Outside the standard specifications, non-standard customization is acceptable.
|
|
